Need Help Exporting to Arduino - TFT_eSPI

tjcorcoran · October 15, 2025, 9:21pm

I’m evaluating SquareLine_Studio for Mac for some of our projects which are all based in an ESP32 MCU with 3.5" TFT_SPI capacitive touch screens. I have been trying to following tutorial #6 by exporting the Smart_Gadget example code to an arduino board. I have tried the Arduino with TFT_eSPI versions 1.0.0 through 2.0.0 and get the same errors with everything. I have set my export root path and UI Export paths to ~/Projects/SquareLine/Smart_Gadget after selecting them in the window and each attempt results in the following error:

Downloading missing Board binary
Project Export in progress
<color=#55FF55> Downloading missing Board binary
Project Export failed: System.IO.FileNotFoundException: Could not find file “/Users/t.j.corcoran/SquareLine/boards/Arduino/arduino_tft_espi_v2_0_0/arduino_tft_espi.zip”
File name: ‘/Users/t.j.corcoran/SquareLine/boards/Arduino/arduino_tft_espi_v2_0_0/arduino_tft_espi.zip’
at System.IO.FileStream…ctor (System.String path, System.IO.FileMode mode, System.IO.FileAccess access, System.IO.FileShare share, System.Int32 bufferSize, System.Boolean anonymous, System.IO.FileOptions options) [0x0019e] in <06094a8353e64785a1618c104ebf50c1>:0
at System.IO.FileStream…ctor (System.String path, System.IO.FileMode mode, System.IO.FileAccess access, System.IO.FileShare share, System.Int32 bufferSize, System.IO.FileOptions options) [0x00000] in <06094a8353e64785a1618c104ebf50c1>:0
at System.IO.FileStream…ctor (System.String path, System.IO.FileMode mode, System.IO.FileAccess access, System.IO.FileShare share, System.Int32 bufferSize, System.Boolean useAsync) [0x00000] in <06094a8353e64785a1618c104ebf50c1>:0
at (wrapper remoting-invoke-with-check) System.IO.FileStream…ctor(string,System.IO.FileMode,System.IO.FileAccess,System.IO.FileShare,int,bool)
at System.IO.Compression.ZipFile.Open (System.String archiveFileName, System.IO.Compression.ZipArchiveMode mode, System.Text.Encoding entryNameEncoding) [0x00037] in <703ae9bab6484b32a9a052c85c0e1419>:0
at ĩĩĪĩĩĪĪĩĩĪĪĪĪĩĪĪĪĪĩĩĩĩĪĪĪĪĪĩĩĪĪĩĪĪĩĩĩĪĩĪĩĪĩĩĩĩĪ.ĩĪĪĪĩĪĪĩĩĩĪĩĪĩĪĩĩĩĪĪĪĩĩĩĪĩĪĪĪĪĪĩĩĪĪĪĪĩĩĩĪĩĪĪĪĩĩ (System.String ĩĩĩĩĪĩĩĩĩĪĩĩĪĩĪĪĩĪĪĪĪĩĩĩĩĩĪĪĩĪĩĩĪĩĩĩĪĪĩĪĩĪĪĩĪĪĪ, System.String ĩĪĪĪĪĪĩĩĪĪĪĩĩĩĪĩĪĩĪĩĩĩĩĪĩĪĪĪĪĩĪĪĪĩĪĪĪĪĪĩĩĪĩĪĩĪĪ) [0x0000e] in <97510392bc5a4243930af3757c9243ba>:0
at ĩĩĪĩĩĪĪĩĩĪĪĪĪĩĪĪĪĪĩĩĩĩĪĪĪĪĪĩĩĪĪĩĪĪĩĩĩĪĩĪĩĪĩĩĩĩĪ.ĪĩĪĪĪĩĩĪĩĩĪĪĩĪĩĪĩĪĪĩĪĪĪĪĩĪĪĪĩĩĩĩĪĩĪĪĪĪĪĩĪĩĪĩĪĪĪ (System.String ĪĪĪĪĩĩĩĩĪĩĩĪĪĩĩĩĪĩĩĩĪĪĩĪĪĩĩĩĪĩĩĪĩĩĪĪĩĩĩĩĩĪĩĪĩĪĪ) [0x0009d] in <97510392bc5a4243930af3757c9243ba>:0
at MenuLine+ĪĪĪĩĪĩĩĩĩĩĪĩĩĩĩĩĪĩĩĪĪĩĪĪĪĪĩĩĪĪĪĩĪĪĩĪĩĩĪĩĩĪĩĪĩĪĩ+<g__Action|0>d.MoveNext () [0x0004c] in <97510392bc5a4243930af3757c9243ba>:0
Export in progress
Export failed: System.IO.DirectoryNotFoundException: Could not find a part of the path ‘/Users/t.j.corcoran/Projects/SquareLine/Smart_Gadget/Smart_Gadget’.
at System.IO.Enumeration.FileSystemEnumerator1[TResult].CreateDirectoryHandle (System.String path, System.Boolean ignoreNotFound) [0x00032] in <06094a8353e64785a1618c104ebf50c1>:0 at System.IO.Enumeration.FileSystemEnumerator1[TResult]…ctor (System.String directory, System.IO.EnumerationOptions options) [0x00048] in <06094a8353e64785a1618c104ebf50c1>:0
at System.IO.Enumeration.FileSystemEnumerable1+DelegateEnumerator[TResult]..ctor (System.IO.Enumeration.FileSystemEnumerable1[TResult] enumerable) [0x00000] in <06094a8353e64785a1618c104ebf50c1>:0
at System.IO.Enumeration.FileSystemEnumerable1[TResult]..ctor (System.String directory, System.IO.Enumeration.FileSystemEnumerable1+FindTransform[TResult] transform, System.IO.EnumerationOptions options) [0x00042] in <06094a8353e64785a1618c104ebf50c1>:0
at System.IO.Enumeration.FileSystemEnumerableFactory.FileInfos (System.String directory, System.String expression, System.IO.EnumerationOptions options) [0x00014] in <06094a8353e64785a1618c104ebf50c1>:0
at System.IO.DirectoryInfo.InternalEnumerateInfos (System.String path, System.String searchPattern, System.IO.SearchTarget searchTarget, System.IO.EnumerationOptions options) [0x00037] in <06094a8353e64785a1618c104ebf50c1>:0
at System.IO.DirectoryInfo.GetFiles (System.String searchPattern, System.IO.EnumerationOptions enumerationOptions) [0x00000] in <06094a8353e64785a1618c104ebf50c1>:0
at System.IO.DirectoryInfo.GetFiles () [0x0000b] in <06094a8353e64785a1618c104ebf50c1>:0
at (wrapper remoting-invoke-with-check) System.IO.DirectoryInfo.GetFiles()
at ĩĩĪĩĪĪĩĩĩĪĩĪĩĩĩĪĪĪĪĩĪĩĪĪĪĪĩĩĩĪĪĩĪĪĪĪĪĩĩĪĪĪĩĪĩĩĪ.ĪĩĪĩĩĪĩĩĩĩĩĩĪĪĩĩĩĩĩĩĪĩĩĪĩĪĩĪĪĩĩĪĩĩĩĪĪĩĩĩĩĪĩĪĪĩĪ (System.String ĪĩĩĩĪĩĪĩĩĪĩĩĩĩĪĩĩĪĩĩĩĩĩĪĪĪĩĪĩĩĩĩĩĩĩĩĩĩĩĩĪĪĪĩĩĩĪ, System.String ĩĪĪĩĩĩĩĪĪĪĪĪĪĩĩĪĩĪĪĩĪĪĩĩĪĩĪĪĩĪĪĪĩĪĩĩĪĪĪĩĪĪĪĩĪĩĩ) [0x0004e] in <97510392bc5a4243930af3757c9243ba>:0
at ĩĪĩĩĪĪĪĪĩĪĪĩĪĩĪĪĪĩĩĪĪĪĪĪĪĪĩĪĪĪĪĪĩĪĩĩĪĪĩĩĩĩĪĩĪĪĩ.ĩĪĩĩĩĩĩĪĩĪĩĩĪĩĪĪĩĪĩĪĪĩĩĩĪĪĩĪĪĪĪĩĩĩĪĪĩĩĪĩĪĩĪĩĩĩĩ () [0x00000] in <97510392bc5a4243930af3757c9243ba>:0
at ĩĪĩĩĪĪĪĪĩĪĪĩĪĩĪĪĪĩĩĪĪĪĪĪĪĪĩĪĪĪĪĪĩĪĩĩĪĪĩĩĩĩĪĩĪĪĩ.ĪĪĪĩĪĪĩĪĩĩĩĩĩĪĩĪĩĩĩĩĪĪĩĩĪĩĩĩĪĩĪĩĪĩĪĪĪĩĪĩĩĩĪĩĩĩĩ (System.String ĩĪĪĩĩĩĪĪĪĪĪĩĪĩĩĪĪĩĪĪĪĪĪĩĩĩĩĪĩĪĩĩĩĩĪĩĩĩĪĩĪĩĪĩĪĩĩ) [0x005ff] in <97510392bc5a4243930af3757c9243ba>:0
at MenuLine+ĪĩĪĩĩĩĩĩĪĪĩĩĩĩĪĪĪĪĩĪĩĩĩĪĪĩĪĩĩĪĩĪĪĩĪĪĪĪĪĪĩĪĩĩĩĩĪ+<g__Action|0>d.MoveNext () [0x000a4] in <97510392bc5a4243930af3757c9243ba>:0
File updated from outside: assets/fonts/ui_font_Number.c

I have tried github and everwhere i can think of to find arduino_tft_espi_v2_0_0/arduino_tft_espi.zip but have been unsuccessful.

Any suggestions are much appreciated!

Marian_M · October 19, 2025, 9:55am

You lack info SQ version MACOS version usw. Plus most simpler project setup is only target LVGL and prepare arduino own project . Then export isnt inside SQ project but C source folder in your target .

Downloading missing Board binary - stuck - Bugs - Forum - SquareLine Studio

ThriveWebDesign · October 21, 2025, 12:23am

Which version of LVGL is your project using? Im having a similar issue if you target LVGL 8.3.6 or 8.3.11. For me this error occurs in the last few releases. If I switch to lvgl 9.1.0 ( tft_espi 2.0.0 ) the export completes successfully. It looks like the board downloads but SLS does not extract it correctly in to the folder so the export fails ( just my 2 cents, may be wrong ) Switch to LVGL 9.1 and see if this resolves the export issue.

tjcorcoran · October 21, 2025, 12:37am

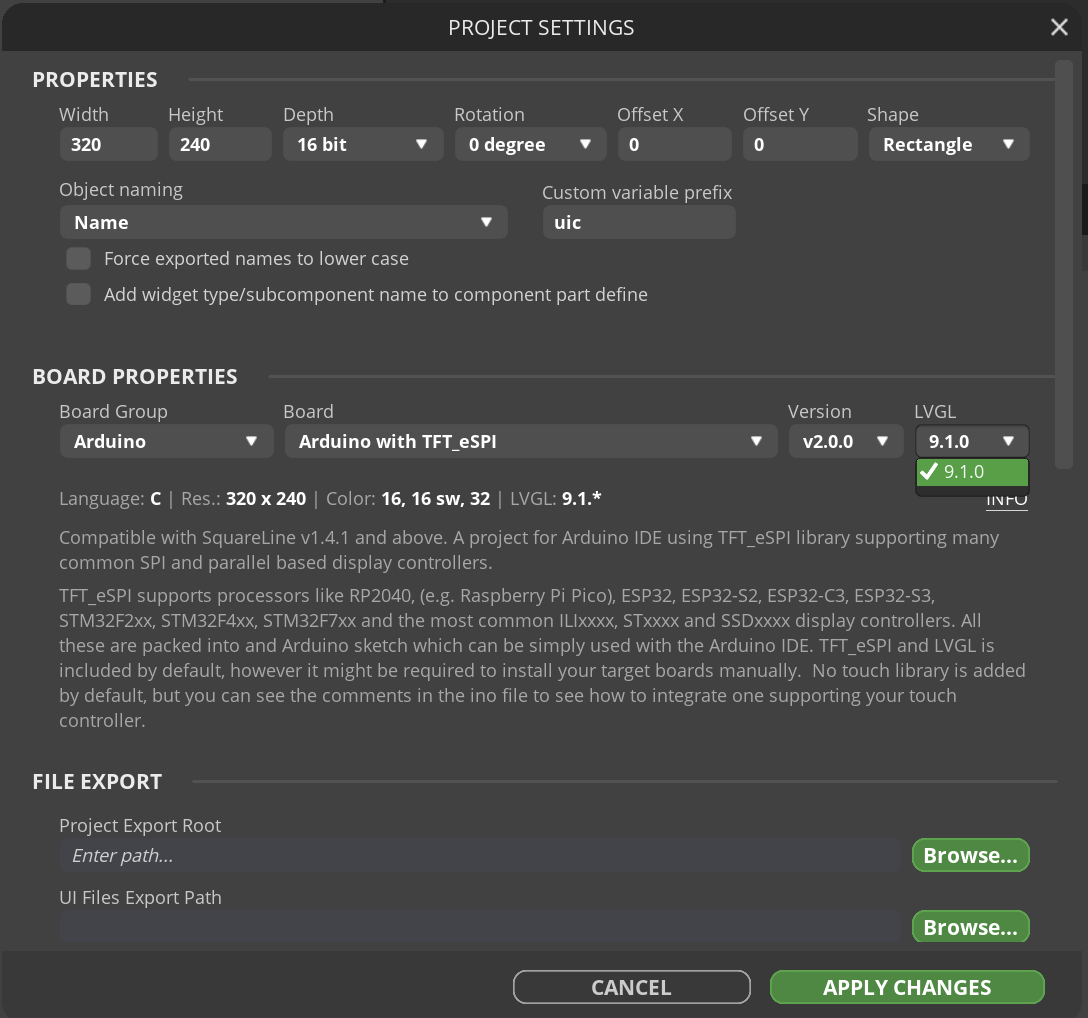

Thank you for the reply. Yes, it is set to LVGL 9.1.0, which is the only option in the dropdown box. I’m running MacOS Sequoia v15.6.1

SquareLine_Support · October 21, 2025, 9:25am

Hi, please try closing SquareLine Studio and deleting the /Users/USERNAME/SquareLine/boards/hash.dat file, then start the program. Then it will download all the board files again. I hope this helps.
