What do you want to achieve?
I created components named DataTab. These are blue tiles of button which contains labels. After exporting the component is missing from the design, but the elements could be returned back when the DataTabs are detached. Why it is happening?
What have you tried so far?
Screenshot or video
Others
- SquareLine Studio version: 1.5.3
- Operating system: Microsoft Windows 11
- Target hardware: STM32,ST7796

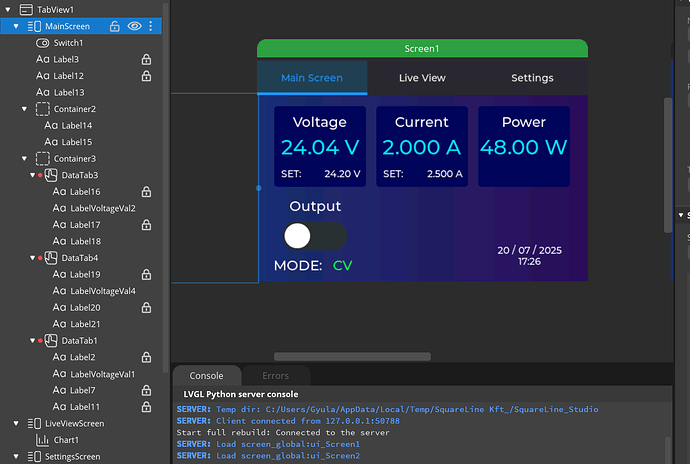

This is how it should look.

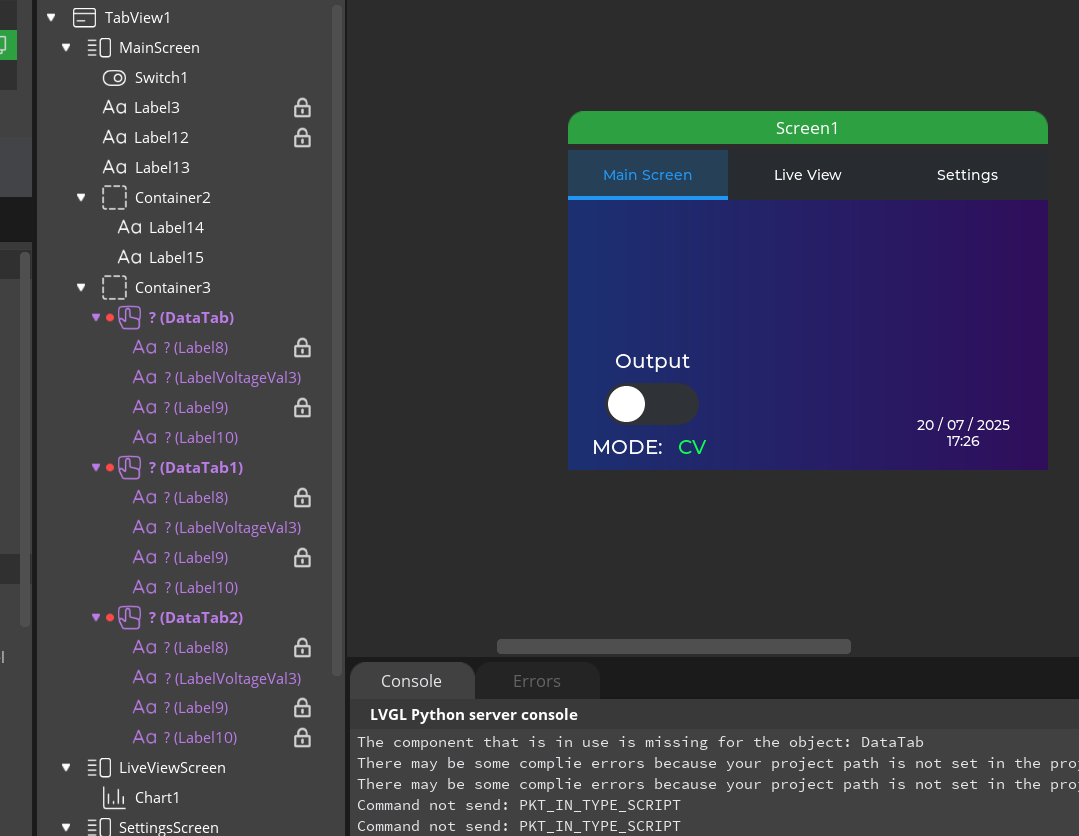

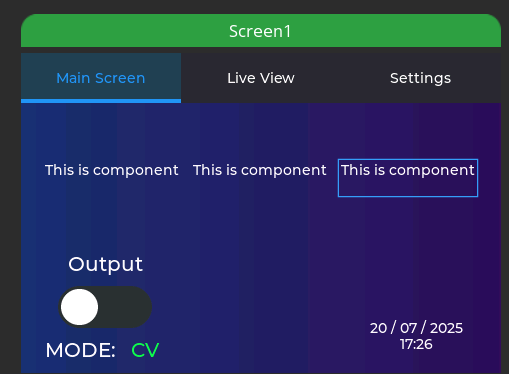

The tiles now are individual elements, but should be component. After exportng the UI the components are missing, tiles are not visible anymore. Only if detached.
Hi, the question marks (???) you see instead of the component’s name indicate that SquareLine Studio cannot load the component’s definition file.
Please check if the DataTab component file is present in your project’s components folder. It seems like the file might be missing or corrupted.
