Png file distorted display in LVGL 9.2.2

Bugs
1

What do you want to achieve?

Proper display of a png file, which was working with LVGL 9.2.2, in image widget

What have you tried so far?

Copied and re-saved the file, tried various parameters like rotation, scale - no change
Exported several times and re-compiled - no change.

Screenshot or video

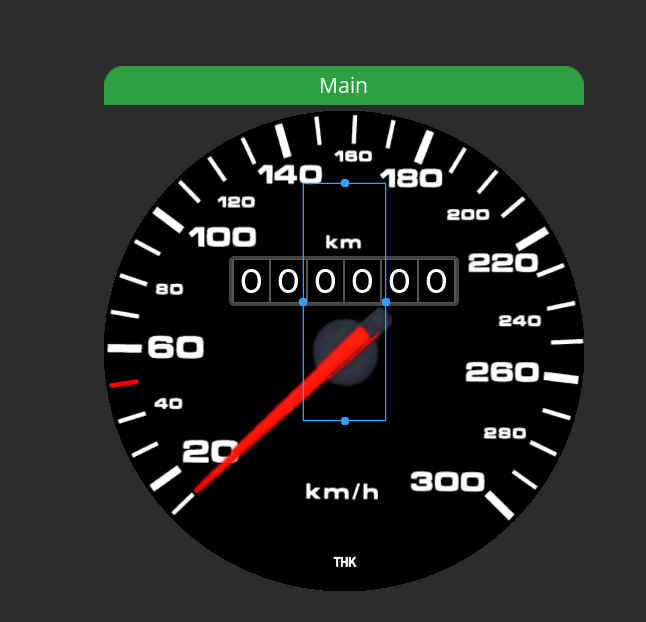

Display in SLS 1.51

image646×622 38.9 KB

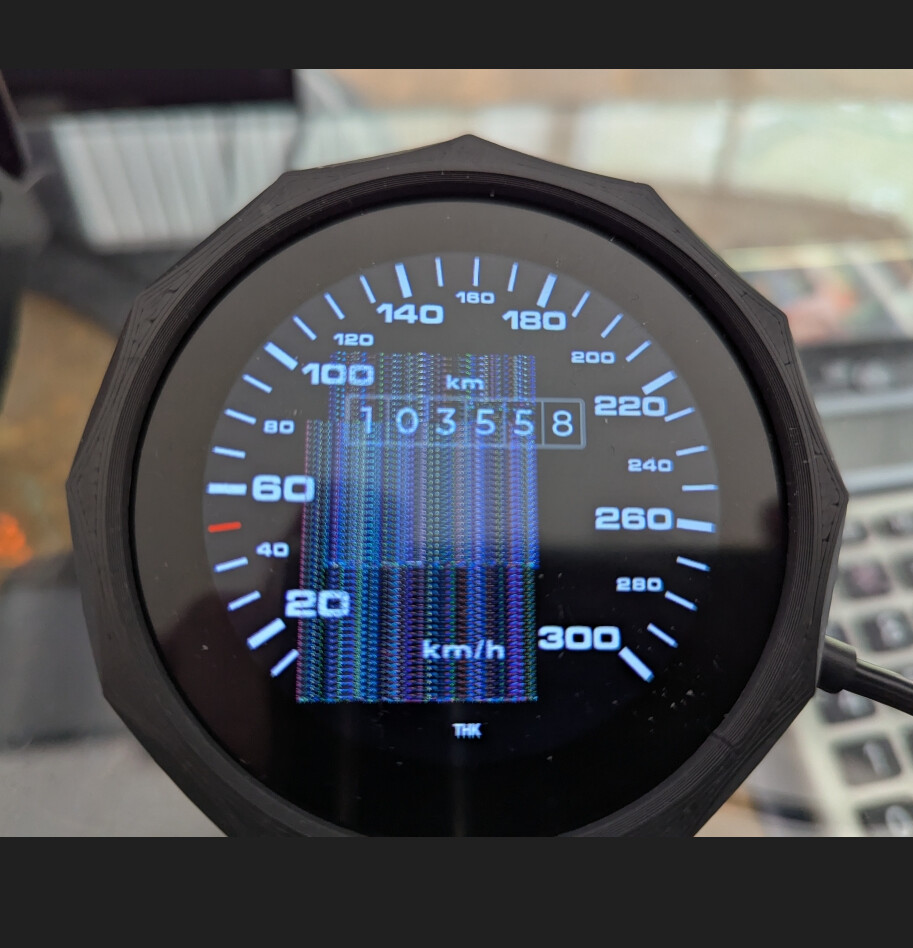

Display on ESP32-S3

image913×948 160 KB

Others

  • SquareLine Studio version: 1.51
  • Operating system: Windows 11
  • Target hardware: ESP32-S3
2

I have found the bug, it was a new setting in LV_conf.h, which was missing:

/*
 * Selectively disable color format support in order to reduce code size.
 * NOTE: some features use certain color formats internally, e.g.
 * - gradients use RGB888
 * - bitmaps with transparency may use ARGB8888
 */

#define LV_DRAW_SW_SUPPORT_RGB565		1
#define LV_DRAW_SW_SUPPORT_RGB565A8		1
#define LV_DRAW_SW_SUPPORT_RGB888		1
#define LV_DRAW_SW_SUPPORT_XRGB8888		1
#define LV_DRAW_SW_SUPPORT_ARGB8888		1
#define LV_DRAW_SW_SUPPORT_L8			0
#define LV_DRAW_SW_SUPPORT_AL88			0
#define LV_DRAW_SW_SUPPORT_A8			0
#define LV_DRAW_SW_SUPPORT_I1			0
