Good morning, I created a small application with squareline with a .png image. When I export the project to elecrow, the image appears at a low resolution. How can I get the image to appear at the correct resolution on the 10.1-inch elecrow HMI display? Thanks in advance to anyone who can help me. Regards, Paolo.
Hi, the problem is most likely that your project is not set to the correct resolution. For the 10.1-inch Elecrow HMI display, you should set the project resolution to 1024 × 600 in the Project Settings. After changing this, SquareLine Studio should display the image at the same size and scale as it will appear on the actual screen.

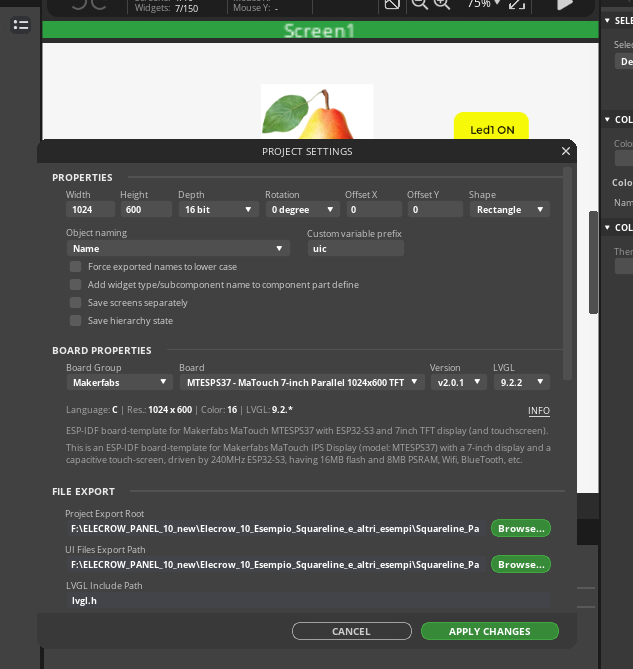

Hi, thanks for your reply. The settings have already been set to 1024x600. I’m attaching the properties. Are the images displayed faded and colorless? The Elecrow 10.1-inch display has a good resolution. I’m using it for ESP-IDF programming with Eclipse, if that helps. Thanks everyone.

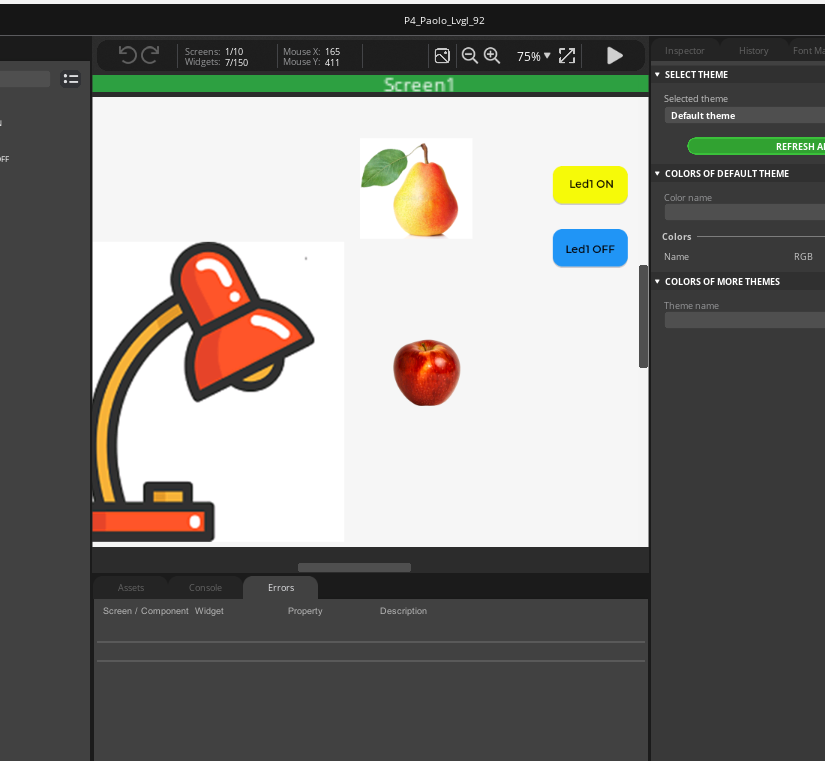

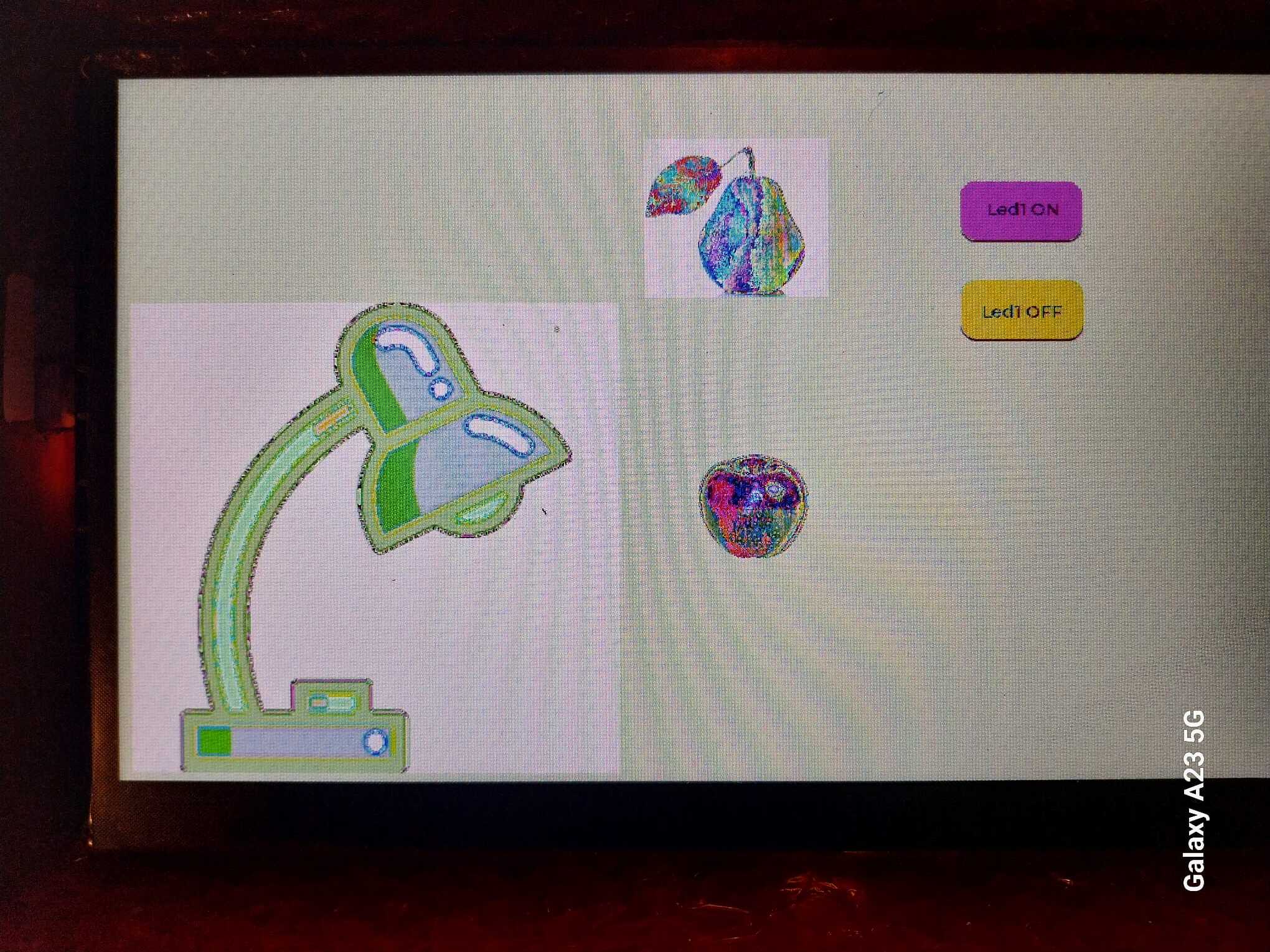

Hello and thank you for your valuable help. I’m attaching a photo of the squareline and a photo of how it appears on your 10.1-inch Elecrow HMI display. I hope they’re helpful. Let me know if you need anything else. I’m using esp-idf with Eclipse. Paolo Bari, Italy
Hi, the problem will probably be that you need to change the bit depth in the settings from 16 bit to 16 bit sw.
Ciao e grazie per avermi risposto. Ma come faccio da squareline modificare il parametro da 16bit a 16bit sw? Grazie

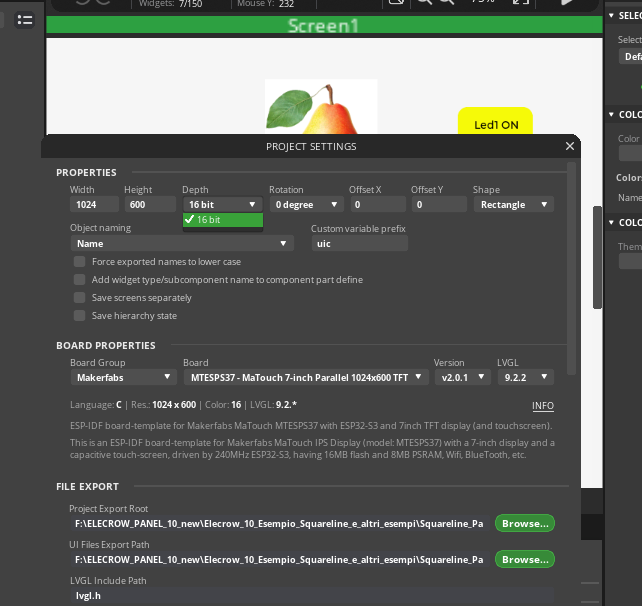

Hi, thanks for reminding me. But how do I change from 16-bit squareline to 16-bit sw?
Hi, It’s in the project settings, next to the resolution.
