Events displayed in reverse order of processing

Bugs
1

What do you want to achieve?

I’d like the order of event handlers displayed in SquareLine Studio to match the order of execution.

Please don’t change the execution order, which could cause issues for existing projects.
Please fix the display order in SquareLine to match the execution order.

What have you tried so far?

I tried creating three handlers of the same type(function call) and creating multiple handlers of different types, both are impacted.

Screenshot or video

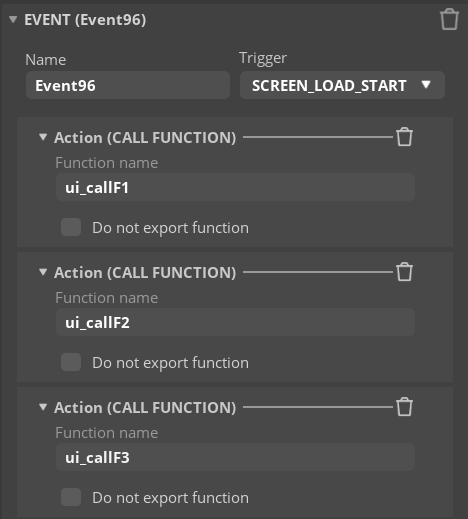

SquareLine Studio event display order:

image468×519 21.5 KB

SquareLine Studio export order:

image441×129 3.1 KB

Others

  • SquareLine Studio version: 1.6.0 2025 (this needs bumped)
  • Operating system: Windows 11
  • Target hardware: custom ESP32
2

Hi, thank you for reporting this. We will fix this in the next version. We are working to have it available by next week at the latest.

1 Like
